ホーム /製品/衝撃負荷試験機/Grade 8.8 Screw Bolt Pull And Torsion Testing Equipment Fastener Torque Tester Price ZCNZ-5000W

Grade 8.8 Screw Bolt Pull And Torsion Testing Equipment Fastener Torque Tester Price ZCNZ-5000W

1.0 Sets
MOQ
Grade 8.8 Screw Bolt Pull And Torsion Testing Equipment Fastener Torque Tester Price ZCNZ-5000W
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 Year
Customized support: OEM, ODM, OBM
Model Number: ZCNZ-5000W
Power: Electronic
Model: ZCNZ-5000W
Control: Computer control
Display: Computer Display
Axial force: 20-1000kN
Torque detection range: 50-5000Nm
Bolt specification: M12~M36
Bolt length: 60~350mm
Repeatability: 0.5%
Relative resolution: 0.25%
Delivery time: 3-5 Days
基本情報
Model Number: ZCNZ-5000W, ZCNZ-5000W
お支払配送条件
Packaging Details: Special wooden packing box for export
Supply Ability: 80 Set/Sets per Month
製品の説明
Product Description

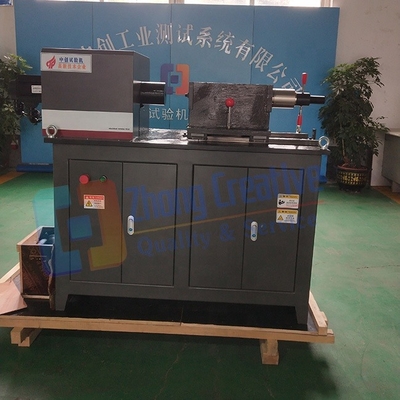

The ZCNZ-5000W tester mainly detects high-strength bolt connection pairs, and can detect the axial force and torque (or torque coefficient) of large hexagon head high-strength bolt connection pairs (M16-M42). The equipment is automatically loaded by a cycloidal pinwheel reducer, a linear guide, a full English operation interface, and a microcomputer controls the automatic tightening, loosening and resetting of high-strength bolts. Intelligent prompts during operation, convenient and quick operation.
Specification
Control method
Computer control
Axial force detection range
20-1000kN
Torque detection range
50-5000Nm
Bolt specification
M12～M36
Bolt length
60～350mm
Repeatability
0.5%
Relative resolution
0.25%
Data processing
ZCJ-TESTING special measurement and control system
Recommend Products
Tensioner Torsion Testing Machine
Metal Torsion Testing Machine
Packing & Delivery
Wooden packaging for export Such a careful packaging Eliminate all possible problem caused by shipping
Company Profile
Our company mainly produces 10 series, 30 categories of products: electronic universal testing machine (tensile testing machine) series, hydraulic universal testing machine series, electro-hydraulic dynamic and static fatigue testing machine series, metal torsion testing machine series, metal impact testing machine series, spring testing machine series, metal bending testing machine series, hydraulic compression testing machine series, friction and wear testing machine series, and non-standard special customized products series, at the same time supporting peripheral testing equipment such as cement, concrete laboratory, metallographic testing equipment, and non-destructive testing equipment etc.
