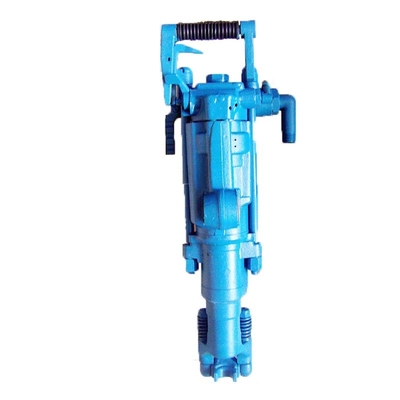

Factory Price YT27 Pneumatic Rock Drill Jack Hammer Drill Machine for Mining
The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
Factory Price YT27 Pneumatic Rock Drill Jack Hammer Drill Machine for Mining | ||||||
Model | YT27 Pneumatic Rock Drill | Weight | 27kg | |||
Lenght | 661MM | Cylider Diameter | 80MM | |||
Piston Stroke | 60mm | Work Pressure | 0.5Mpa | |||
Impact Energy | ≥60.2J | Impact Frequency | ≥37HZ | |||
Air Comsumption | 3.8m3/min | Air Pipe Inner Diameter | 25mm | |||
Drill Diameter | 34-42mm | Drill Depth | 5M | |||
1) Fit for wet drilling in medium-hard or hard rock.
2) Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy to maintain and repair.
3)Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
Packaging | ||
Size | 668X248X202mm | |
Weight | 28kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
