XJUD-22
Computer Control Plastic Izod Impact Testing Machine
1.Applications:
XJUD-22 Computer Control Plastic Izod Impact Testing Machine is computer control and digital
display type. Its Man-Machine dialogue very convenient, high precision, automatic display the
impact energy, automatic calculation the impact strength, can automatic calculate the average
impact strength of the entire set of samples, can delete data arbitrarily.
This machine is electric release hammer.
2.Main Specification:
|
Model |
XJUD-22 |
||
|
Pendulum Energy |
5.5 J |
11 J |
22 J |
|
Impact Speed |
3.5m/s |
||
|
Pendulum Impact Accuracy |
0.001 J |
||
|
Pendulum Angle |
160° |
||
|
Distance Between Pendulum Center And Sample Center |
322mm |
||
|
Distance Of The Impact Blade To The Upper Plane Of Jaw |
22mm |
||
|
Fillet Radius Of The Blades |
R=0.8mm |
||

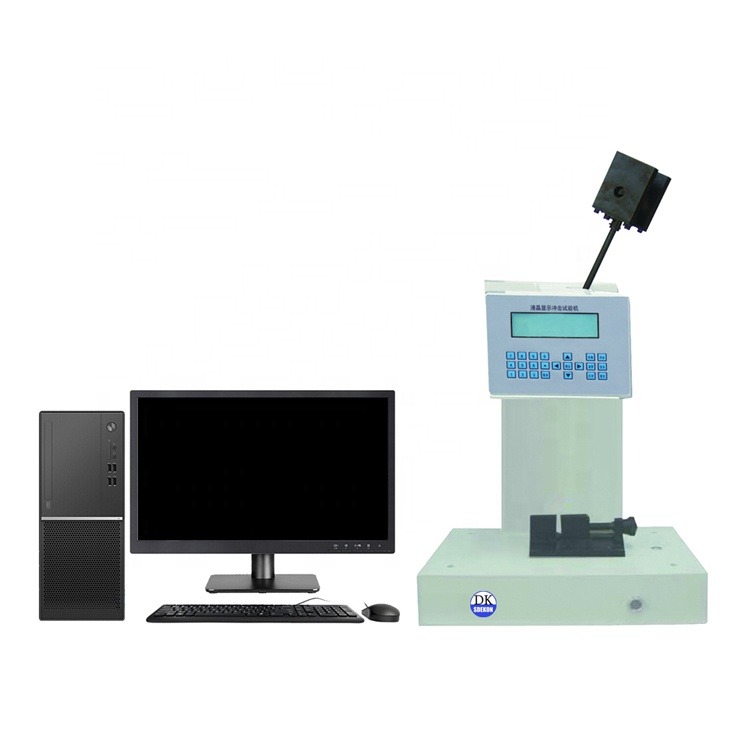

3.Product Physical Pictures:
